YRPV-400D 1500VDC Solar PV Fuse Link is designed to protect and isolate Photovoltaic (PV) array combiners and DC circuit breakers. Enhanced structural fuse link with an NH2XL standardized size effectively protect the 1500VDC Photovoltaic (PV) systems. 1500VDC 400A NH2XL Solar PV Fuse Link with Striker offers a range of various ampere ratings ranging from 125A to 400A, helping to match the specific conditions of different PV applications such as PV array protection, PV Inverter DC input protection, and more. Zhejiang Galaxy Fuse Co. Ltd. (Yinrong) continues to develop new Solar Photovoltaic (PV) Fuse products to meet the emerging needs of the PV industry.

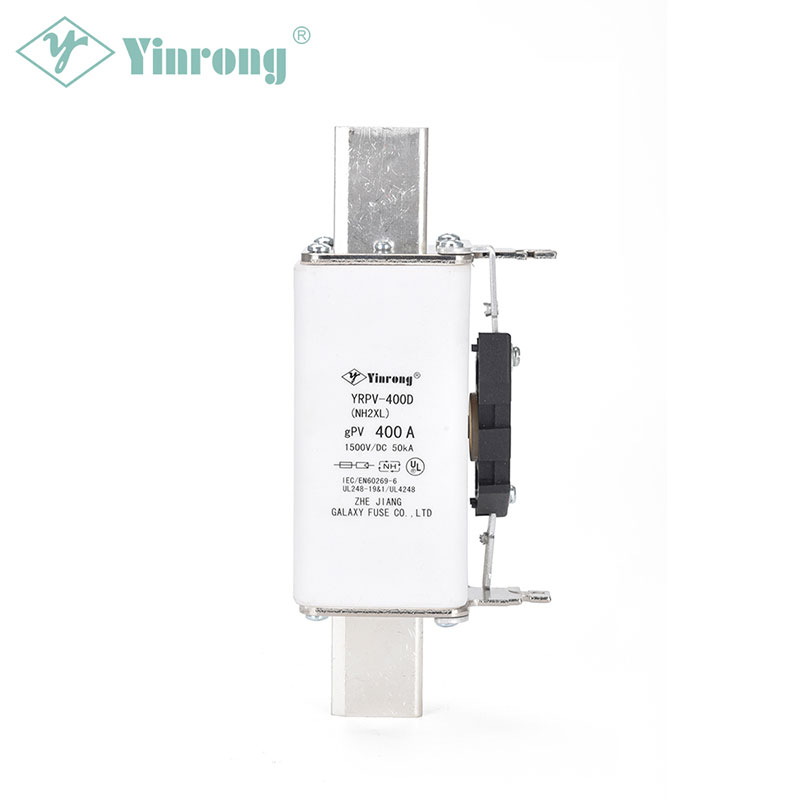

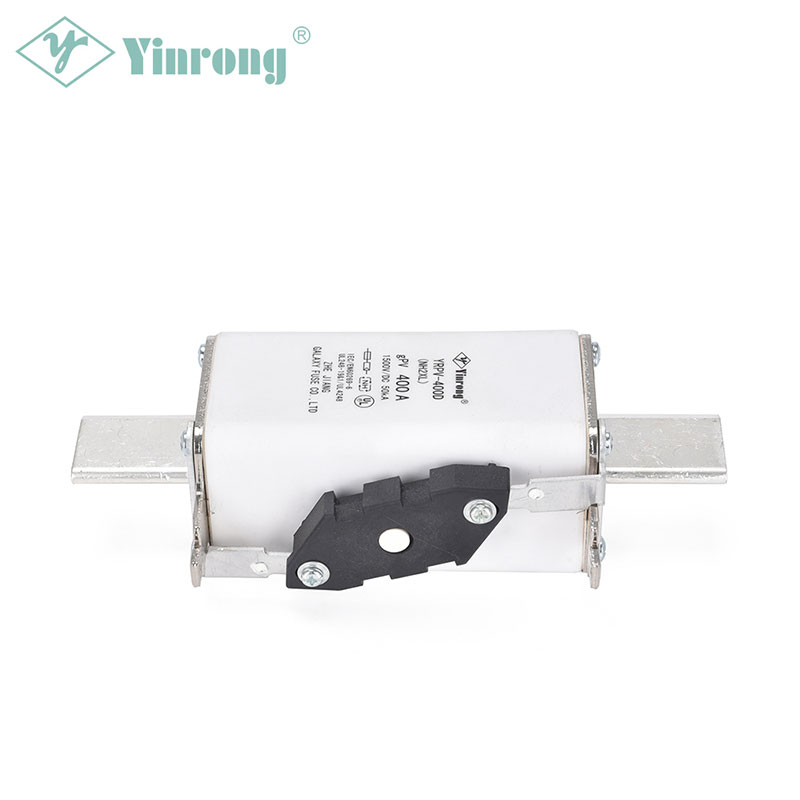

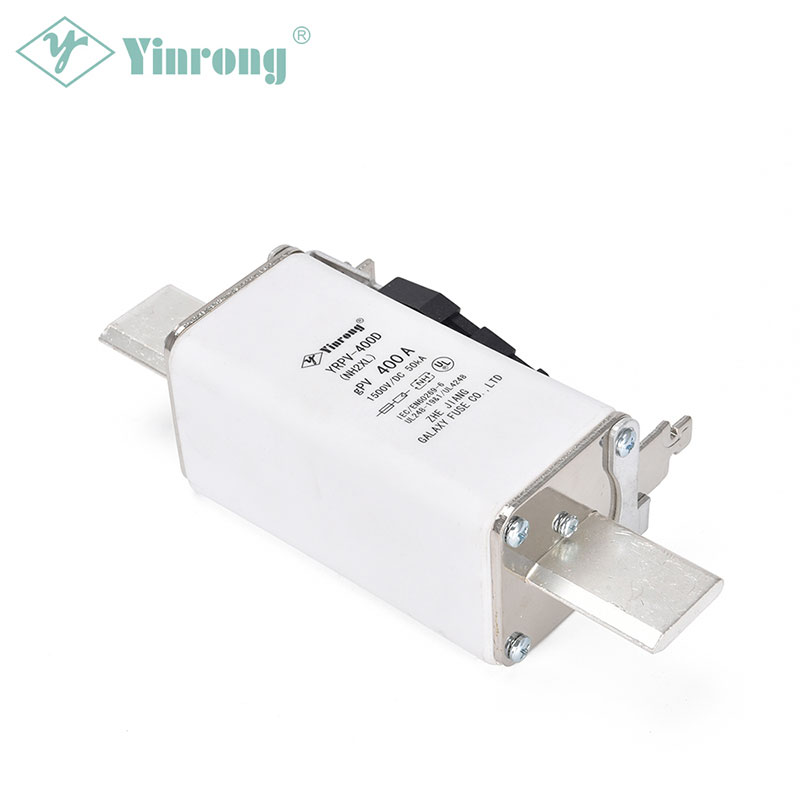

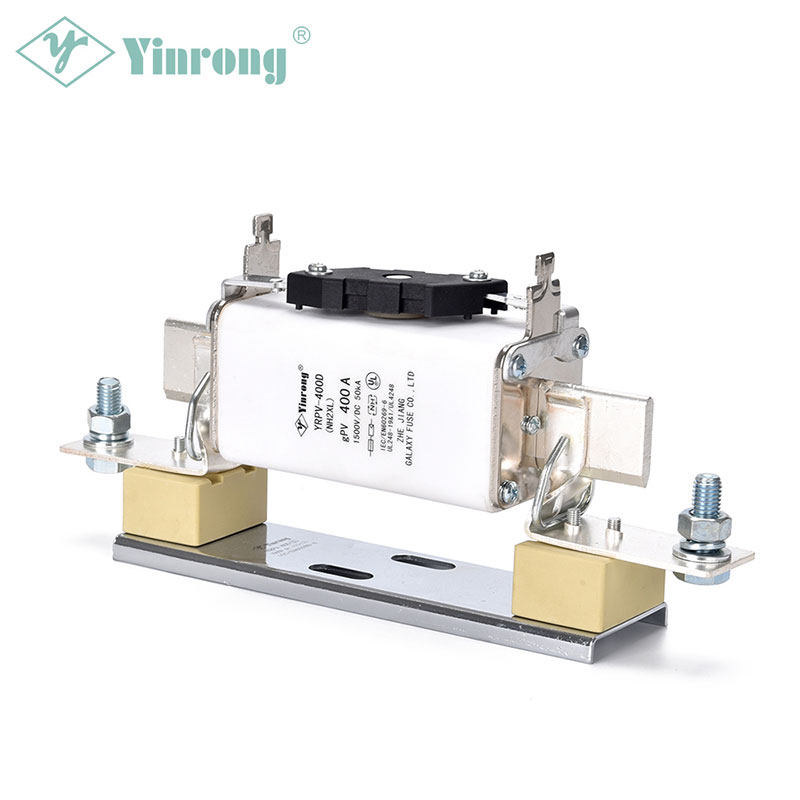

1500VDC 400A NH2XL Solar PV Fuse Link עם Striker
• הרפובליקה העממית של סין
קוד מוצר | זרם מדורג | קיבולת שבירה | תעודת בטיחות | אובדן כוח 1.0 אינץ' (W) |
משקל נטו | ||
---|---|---|---|---|---|---|---|
|
|
|
|||||
י.רPV400D/225NH | 225A | 1500Vdc UL: 50kA |
○ | ○ | ● | 38.6 | 1.315 ק"ג |
YPRV400D/250NH | 250A | ○ | ○ | ● | 43.5 | ||
י.רPV400D/315NH | 315A | ○ | ○ | ● | 52.3 | ||
י.רPV400D/355NH | 355A | ○ | ○ | ● | 58.0 |
הערה:●מציין עבור אישור אושר;○מציין עבור הסמכה ממתינה
① ……קוד הנתיך של גלקסי……י.ר
②……“פוטו-וולטאיים”……PV
③……זרם מדורג מרבי של נתיך……400A
④ ……זרם נקוב של קישור נתיך……למשל: 315A
אנו שומרים לעצמנו את הזכות לבצע שינויים טכניים
